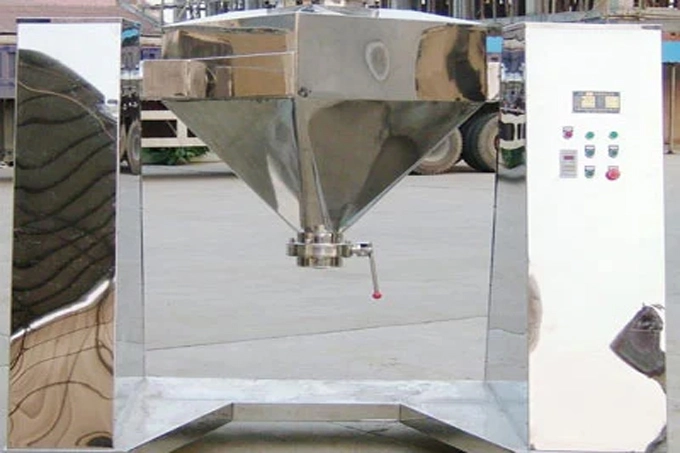

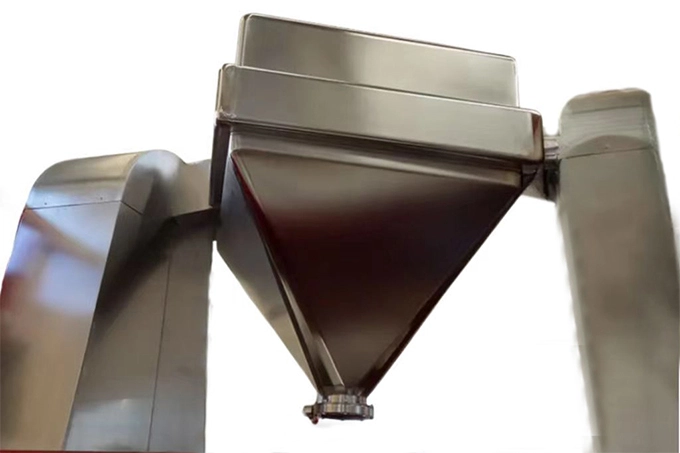

Square Cone Blender

The materials are loaded into the inner barrel of the Square Cone Mixer, the axis of the hopper support and the axis of the rotary shaft from a certain angle. Materials of different compositions move in three-dimensional space inside the closed barrel, resulting in strong flipping, diffusion and contraction to achieve the optimum mixing effect that defines the square cone mixer’s industrial applicability.

Get Vibrating Machine Price Now

Specifications of Square Cone Blender

Unique design, compact structure, beautiful appearance
Uniformity of 99%, volume loading coefficient up to 0.8
Low rotation height, stable operation, reliable performance and easy to operate

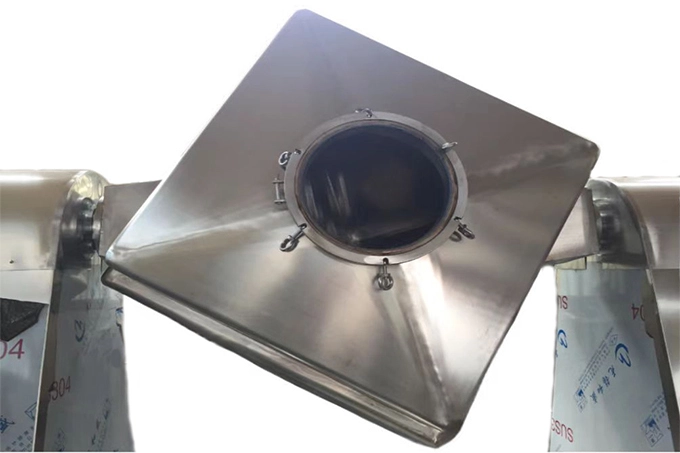

Both sides of the barrel are mirror polished, no dead ends, easy to discharge and clean
No cross contamination in accordance with GMP requirements
Barrel volume of 300L-3000L

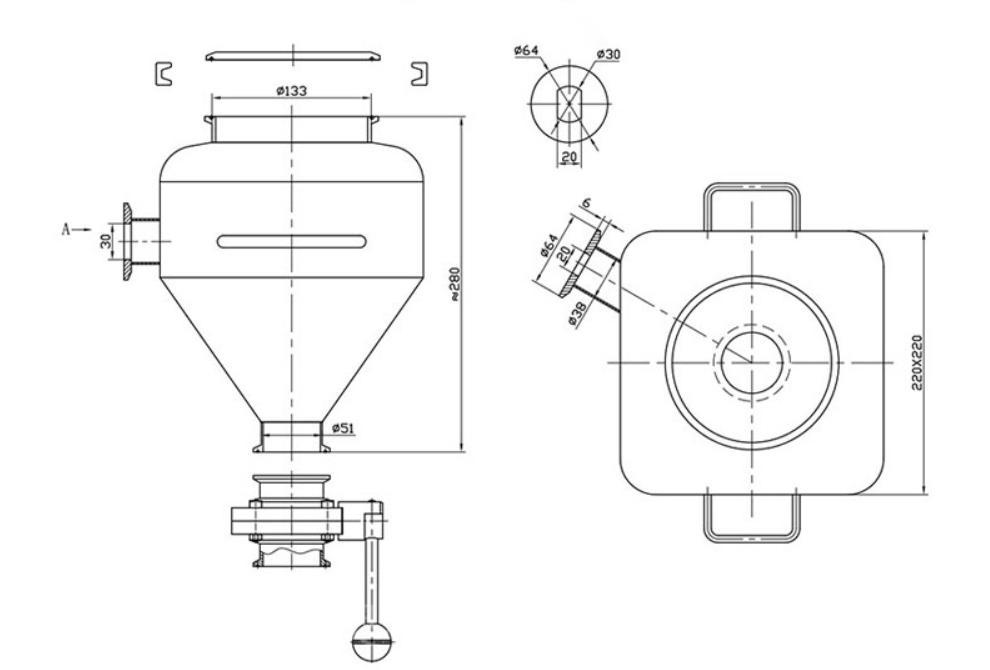

Square Cone Blender Diagram

Square Cone Blender Application

The square conical blender is a special material mixing widely used in pharmaceutical, chemical, metallurgy, food, light industry, feed and other industries. This versatile square cone mixer (square conical blender) is trusted for its reliable mixing performance across diverse industrial applications.

Technical parameters of Square Cone Blender:

Model	TSM-12	TSM-20	TSM-40	TSM-60	TSM-80	TSM-120
Mixing barrel volume(m3)	0.3	0.5	1.0	1.5	2.0	3.0
Max loading volume(m3)	0.24	0.4	0.8	1.2	1.6	2.4
Max charge weight(kg)	150	250	500	750	1000	1500
Spindle speed(rpm)	14	13	12	10	10	8
Motor(kw)	1.5	2.2	4	5.5	7.5	11
Weight(kg)	600	750	1200	1650	2000	3000
Dimensions(LWH) mm	185012801980	220015302220	280020002820	293023303355	330025503280	380030003800
