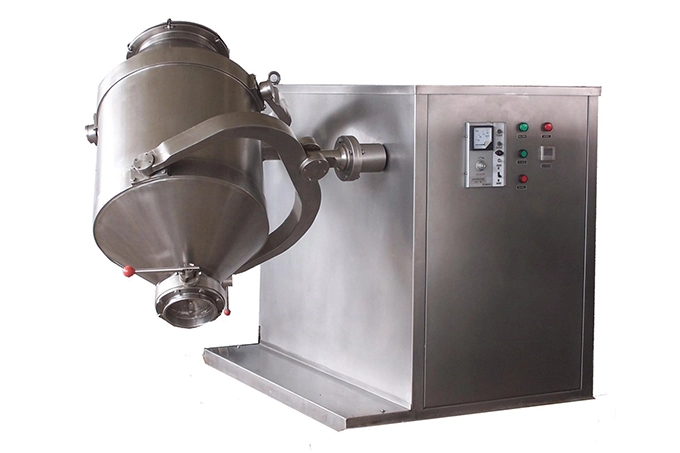

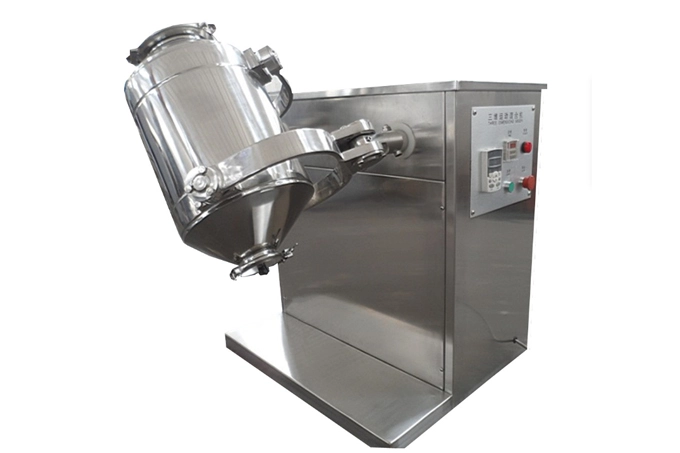

Three-Dimensional Blender

The three-dimensional mixer—also referred to as a three dimensional mixer—is a type of blender used for high uniformity mixing of powdery and granular materials in pharmaceutical, chemical, food, light industry, electronics, machinery, mining and metallurgy, defense industry and scientific research units.

The three-dimensional motion mixer consists of a machine base, transmission system, electrical control system, multi-directional mechanism mixing barrel and other components.

The mixing barrel in direct contact with the material is made of stainless steel, and the inner and outer walls of the barrel are polished.

Get Vibrating Machine Price Now

Three-Dimensional Blender Working Principle:

Driven by the driving shaft, the barrel with the materials loaded performs cycling compound movements of transmission and tumbling, which make the materials move annularly, radially and axially in the body, thus achieving mutual flow, spread, accumulation and mixing of materials for the purpose of fully mixing—core to the efficient blending performance of the three dimensional mixer. This working principle also enables the equipment to achieve efficient powder processing performance similar to a high speed powder mixer in applications requiring fast and uniform blending.

Benefits of Three-Dimensional Blender

For different powder mixing requirements, other blender solutions such as a square cone mixer can also provide gentle mixing, high uniformity and efficient material handling performance.

No requiring installation foundation, making it easy to maintain and extend service life
High mixing efficiency, short mixing time, and uniformity as high as 99.5%
Loading capacity 85%, and the loading volume is more than twice that of the ordinary rotary type
Low height and small turning space
Discharging port of the mixing barrel adopts an eccentric design, no dead corners and no residues during discharging, easy to clean and complies with the requirements of pharmaceutical and medical regulations
Low speed starting, smooth operation, timing, deceleration and stop

Technical Parameters of Three-Dimensional Blender

Model	TMD-5	TMD-10	TMD-15	TMD-20	TMD-50	TMD-100	TMD-200	TMD-400	TMD-600	TMD-800	TMD-1000	TMD-1200	TMD-1500
Barrel capacity (L)	5	10	15	20	50	100	200	400	600	800	1000	1200	1500
Max loading capacity(L)	4	8	12	16	40	80	160	320	480	640	800	960	1200
Max loading weight(kg)	2.5	5	7.5	10	25	50	100	200	300	400	500	600	750
Power(kw)	0.55	0.55	0.75	0.75	1.1	1.5	2.2	4	5.5	7.5	7.5	11	11
Dimensions mm(LWH)	720650950	8507001050	9007501100	10008001150	140010001200	170012001500	180014001600	210018001950	240022002350	260023802500	265025002600	295026502750	310028502930
Weight (kg)	150	180	200	250	300	500	800	1200	1500	2000	2500	3000	3500
